BACKING FIXING

Terracotta Ventilated Facades

For different facade structures and curtain wall design requirements, We provides corresponding installation system solutions and fixing components. Leiyuan also provides customized machining options for terracotta panels and baguettes, inclusive of drilling, backside jogs, horizontal and vertical cutting, miter cut for corner, etc.

Common Installation System

  • T30mm Facade Supporting System
  • Panel T30mm Fixing
  • T18mm Facade Supporting System
  • More......

Terracotta Rainscreen System

Terracotta Rainscreen System Backing Fixing | China Leiyuan

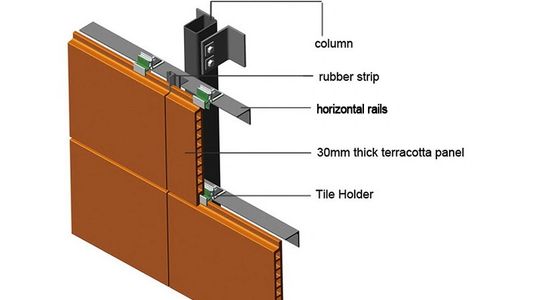

T30mm Facade Supporting System

This supporting system is suitable for all types of terracotta rainscreen facade panels. It is easy to install, and a single terracotta panel can be replaced separately. Panels can be arranged horizontally and vertically by adjusting the supporting system.

Terracotta Rainscreen System Backing Fixing | China Leiyuan

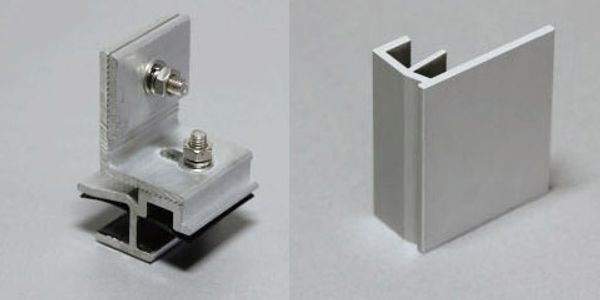

Panel T30mm Fixing

Backing fixing components for terracotta suspended ventilated facade (double-skin panel in thickness: 20,22,24,30,40 mm). Both horizontal and vertical support systems are available.

Terracotta Rainscreen System Backing Fixing | China Leiyuan

T18mm Facade Supporting System

This installation system is suitable for lightweight terracotta panels (Thickness: 15-18mm) that have back extruded grooves for installation. Less depth of ventilated cavity is required by this system.

Terracotta Rainscreen System Backing Fixing | China Leiyuan

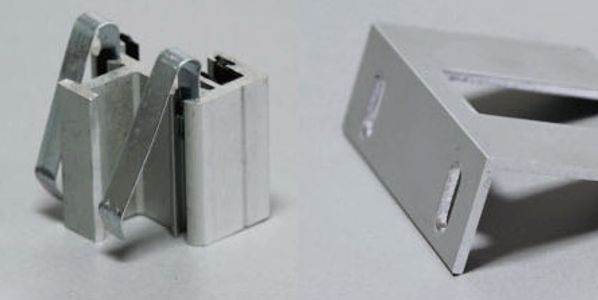

Panel T18mm Fixing

The supporting frame system and fixing clips employed for thin, fluted terracotta facade tiles. Leiyuan customizes mechanical and clip-based solutions for specific project.

Terracotta Rainscreen System Backing Fixing | China Leiyuan

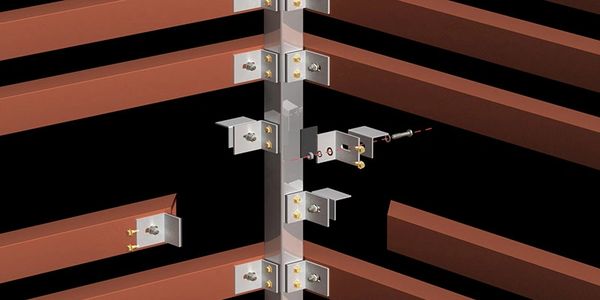

Baguette & Louver Fixing System

Our basic installation system for terracotta baguettes and louvers consists of side fixing and back fixing solution. Baguettes can be installed at all specific angles, such as horizontally and vertically.

Terracotta Rainscreen System Backing Fixing | China Leiyuan

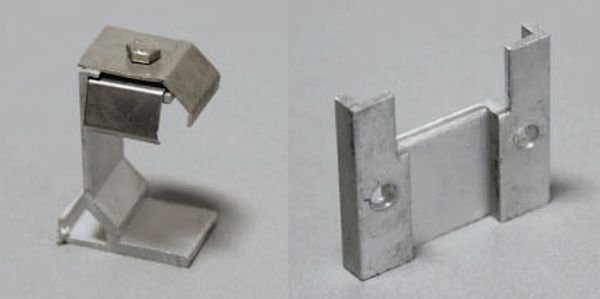

Baguette Fixing

We provides side and back fixing systems for terracotta baguette and louver products. Galvanized steel, aluminum and architectural stainless-steel attachment systems can be customized in accordance with facade structural demand.
