TERRACOTTA PANELS
TERRACOTTA PANELS FEATURES
Fastness
The Terracotta Cladding Tiles (Terracotta Siding) are made from high quality clay. They are kilned and extruded under vacuum and high pressure at high temperature. The characteristics include: low consumption, radiation-free, reduced light pollution, and fastness.
Waterproof and Anti-noise
The hollow structure design significantly reduces not only the material but also the load on the building's facade structure system. By kiln-firing at high temperatures, the heat transfer coefficient can be effectively reduced, which helps with insulation and anti-noise.
Fireproofing and Anti-freeze
Advanced technology and equipment, precise cutting and rigorous calibration ensure product quality and size stability. The Terracotta Cladding Panels are fire-resistant and wear-resistant. It can have high stability even in the face of ultra-normal low or high temperatures.
Self-Cleaning Capacity
The metal content is relatively low in the clay material. As a result, it will face difficulties in producing static and adsorbed dust. With wind and rain, they can be easily self-cleaning.
Simple and Natural
The rich colors basically meet the design requirements of the mainstream of modern architecture.
Natural textures and timeless colors enrich the artistic beauty of the architecture.
Superior Board Type and Diversity Model
We provide a variety of products for your reference. Various sizes are cut to match the product and installation requirements. In addition, it gives the Terracotta Cladding Panels building a stunning visual impact.
Terracotta Cladding Tiles
Terracotta Cladding Tiles are available in a wide range of colors for designers and project owners to choose from, including ivory, brown, red earth, sand gray, pearl white, pink, silver, and iron gray. The Terracotta Cladding Panels (Terracotta Siding) are also favored by many architects with various surfaces: natural plain surface, groove surface, glazed surface etc. The ventilated structure not only reduces the weight of terracotta Cladding Tiles, but also has significant noise reduction and favorable heat retention properties.
Customized colors, size, surface is acceptable.
INFORMATIONS
DIMENSIONS OF TERRACOTTA PANELS
Width: Min 150mm, Max 600mm
Length: Min 250mm, Max 1500mm
Thickness: 18mm, 30mm, 22mm, 12mm
10mm to 15mm - soild terracotta tile
15mm to 90mm - terracotta cladding tiles
All sizes can be tailor-made.

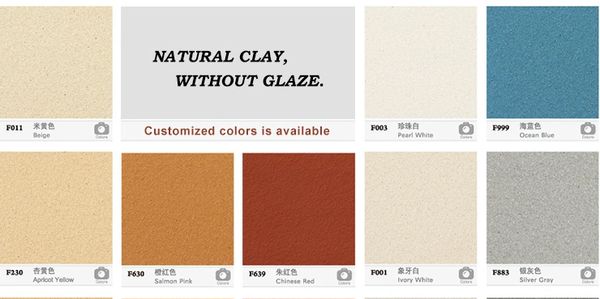

COLORS OF TERRACOTTA PANELS
Terracotta Siding have more than 60 standard colors. More colors can be achieved by glazing. It is assured that the color will never fade.
Seven series: White | Red | Yellow | Gray | Blue | Green | Brown
RICH COLOR CHOICE, NEVER FADE
TEXTURE
Leiyuan terracotta panels are available in a wide range of custom and standard natural burnished colors and colored glazes. Different finishes & textures are available, e.g., sandblasted, stripped, honed, wood grain and wavy. They also have special surface treatments, e.g., micromachining and 3D inkjetting. Correspondingly, the LEIYUAN terracotta panels are able to reflect and express the architect's design concepts and vividly display different façade styles and effects for various buildings.
SURFACE
Surface textures vary with molding and post-production treatments such as glazing, polishing, etc. - Natural Flat Finish, Sanding Finish, Grooved Finish, Linear Finish, Glazed Surface, Grainy Texture, Special Shape, Digital Inkjet Tile, Carved Panel .
ABNORMALITY
To meet the requirements of curtain wall structure design, installation systems, facade design, wind load and other requirements, LEIYUAN can provide terracotta panels of various thicknesses, dimensions, shapes and profiles.
BACK FIXING SYSTEM
To satisfy facade structure and curtain wall design requirements, LEIYUAN provides corresponding installation system solutions and fixing components. LEIYUAN also offers customized machining options for terracotta panels and baguettes, inclusive of drilling, backside jogs, horizontal and vertical cutting, miter cut for corner, etc.
PROJECT CASES
China LEIYUAN is passionate about upgrading and developing Terracotta Cladding Tiles and tapping its potential in modern architectural design and applications. We are honored that our architectural terracotta products are increasingly being used in various architectural projects at home and abroad, demonstrating the beauty of Terracotta Cladding Panels globally.
Technical Parameters of Terracotta Panels
DIMENSIONS
Length ±1.0mm for cuts
Height
150mm to 400mm (Natural Colors) ±2.0mm
400mm to 700mm (Natural Colors) ±3.0mm
Thickness ±1.0mm
Straightness in Hole direction ±0.25% of length
Diagonal Flatness ±0.25% of diagonal
Vertical Flatness Cross to Hole Direction ±1.0% of height
SURFACE QUALITY
A minimum of 95% of the tiles shall be free from visible defects that would impair the appearance of a major area of tiles.
RAINSCREEN PHYSICAL PROPERTIES
Wind resistance performance: 9KPa
Earthquake resistance performance: More grade 10
Performance in plane deformation: Grad 5
PHYSICAL PROPERTIES
Density:2.0-2.4/cm3
Dry Weight: 32kg/m3
Posson's Ratio: 0.243
Elastic Modulus: 55.03GPa
Water absorption: 4.9% (3%>=average value<=6%)
Benging strength: 35.9MPa
Breaking strength: 3750N
Modulus of rupture: >=14MPa
Mosisture expansion: 0.03%
Thermal Conductivity: 0.26W/m.K
Product radioactivity: 0.5
Linear themal expansion: 5.09x......
Fire resistance performance Grade 1
Acoustic Insulation: Reduce noise by more than 9db
CHEMICAL PROPERTIES
Pollution resistance: Grade 3
Resistance to low concentrations of acid and alkali: Grade UA
Resistance to high concentration Grade ULA
Resistance concentrations of acid and alkali: Grade UA
